ch13-反应式编程基础

两种不同的编程范式

  • 命令式编程，imperative
  • 反应式编程，Reactive Programming

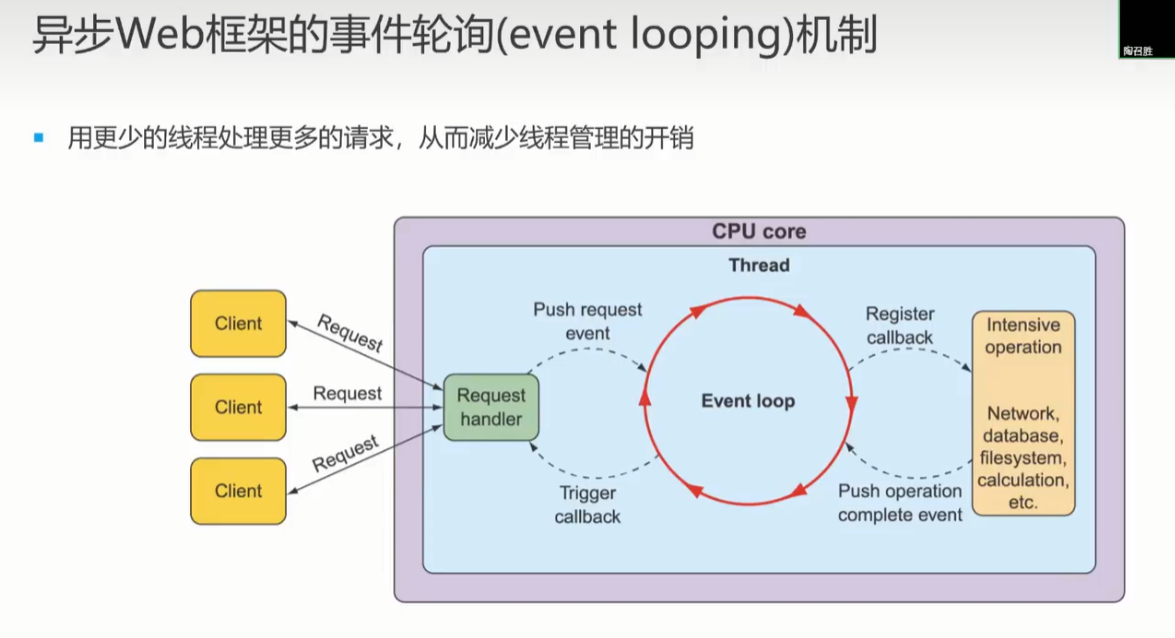

Reactive Programming解决什么问题

image-20231206212849372

Reactor

1
2
3
4
<dependency>
    <groupId>io.projectreactor</groupId>
    <artifactId>reactor-core</artifactId>
</dependency>
  • Reactive Streams：Netflix、Lightbend和Pirotal于2013年开始制定的一种规范，旨在提供无阻塞回压的异步 流处理标准
  • Reactor：Spring Pivotal团队提供的响应式编程的Java实现，其它类似实现：RxJava
    • 函数式、声明式，描述数据会流经的管道或流
  • Spring WebFlux：启用基于响应式编程的Web应用程序的开发。提供类似于Spring MVC的编程模型

Java的stream与反应式的流区别

  • Java的stream通常都是同步的，并且只能处理有限的数据集，本质上来说，它们只是使用函数来 对集合进行迭代的一种方式

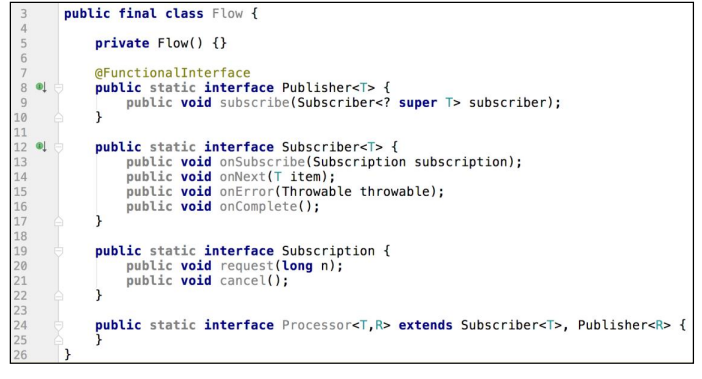

  • JDK9中的 Flow API对应反应式流

image-20231206213607767

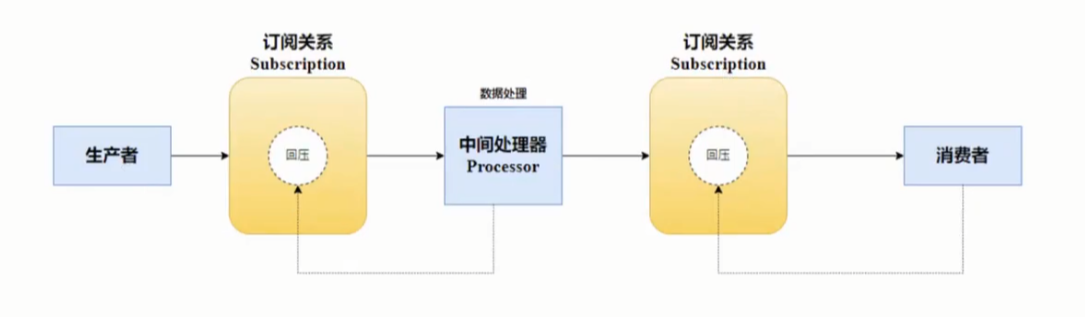

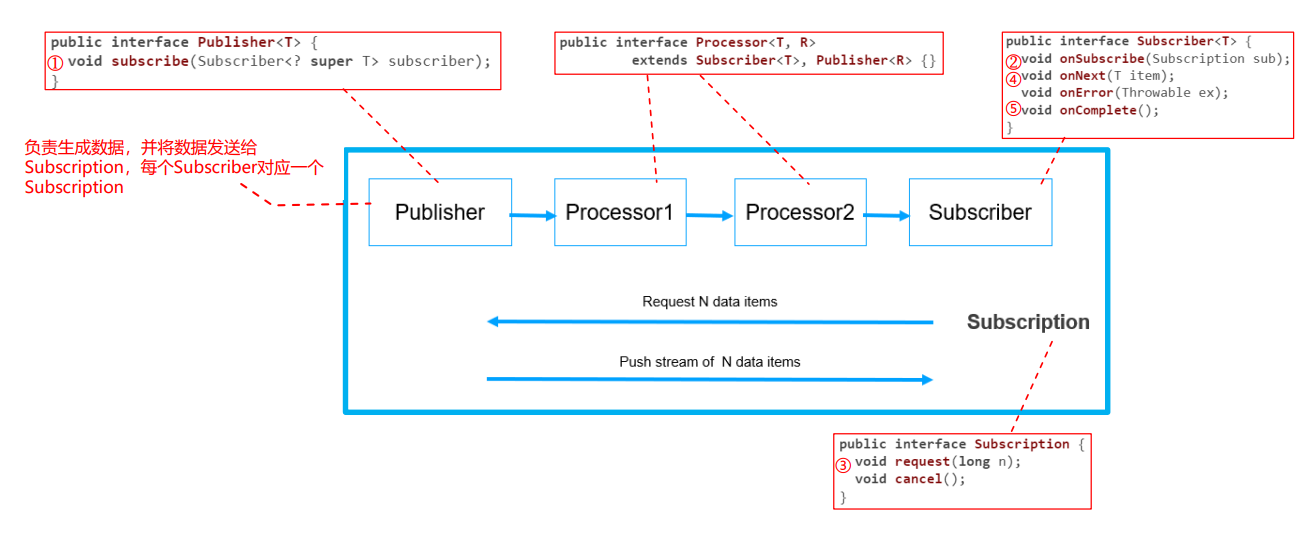

反应式流规范定义的4个接口（重要）

  • org.reactivestreams.*
  • Publisher：数据发布者
  • Subscriber：数据订阅者
  • Processor：处理器
  • Subscription：协调

处理过程是异步的

消费者驱动，消费者去请求发布者才会发布数据

image-20231206213636947

image-20231206221741285

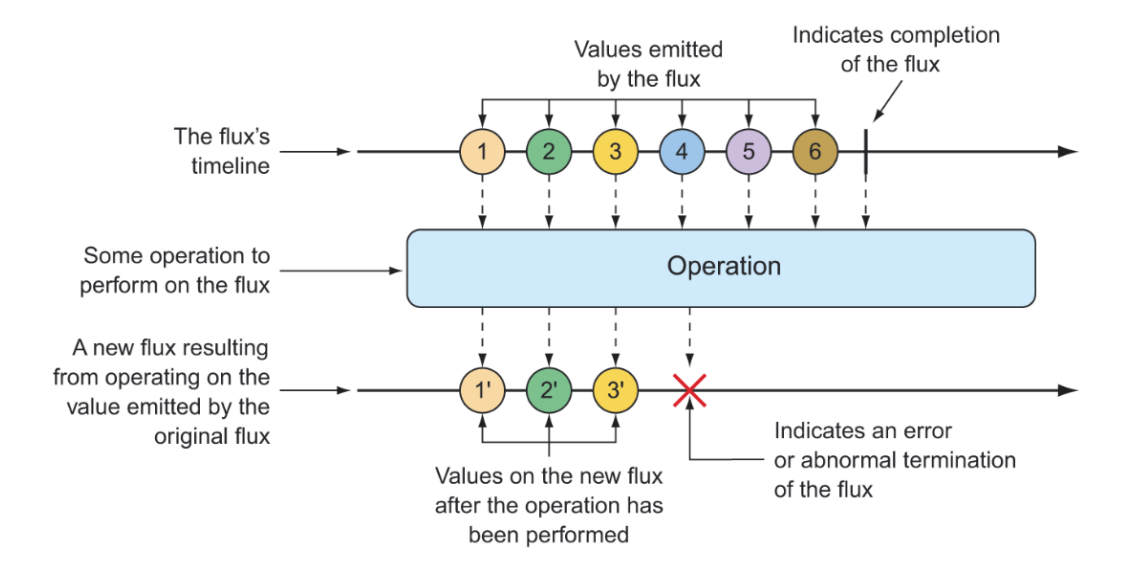

反应式流图（Flux）

image-20231208190829936

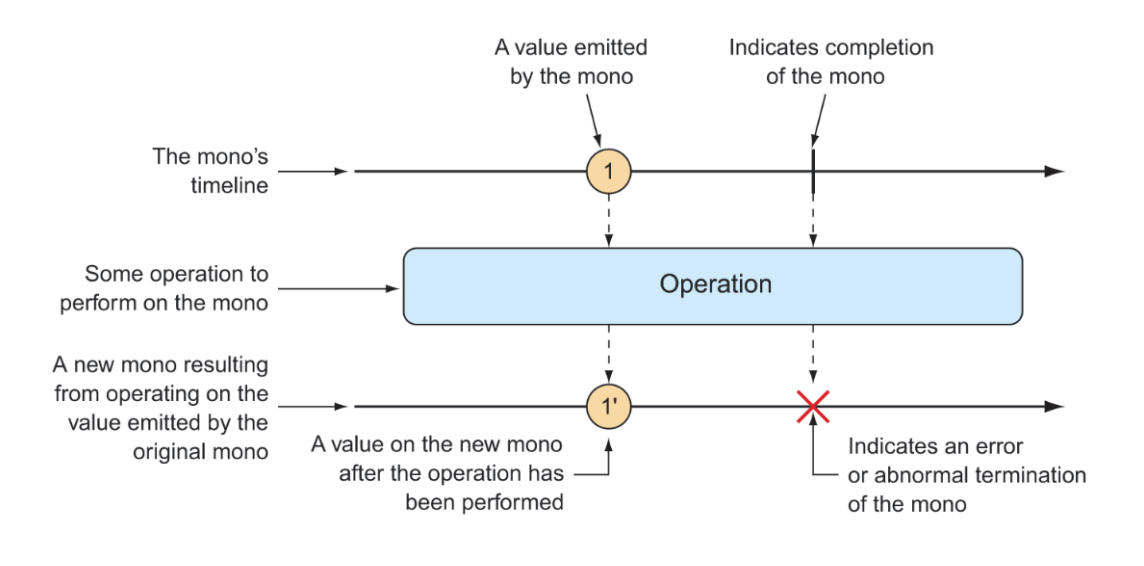

反应式流图（Mono）

image-20231208190842303

两个基本概念：Flux 和 Mono

  • Flux：包含 0 到 N 个元素的异步序列
  • Mono：包含 0 或者 1 个元素的异步序列
  • 消息：正常的包含元素的消息、序列结束的消息和序列出错的消息
  • 操作符（Operator）：对流上元素的操作

操作类型

  • 创建操作
  • 组合操作
  • 转换操作
  • 逻辑操作

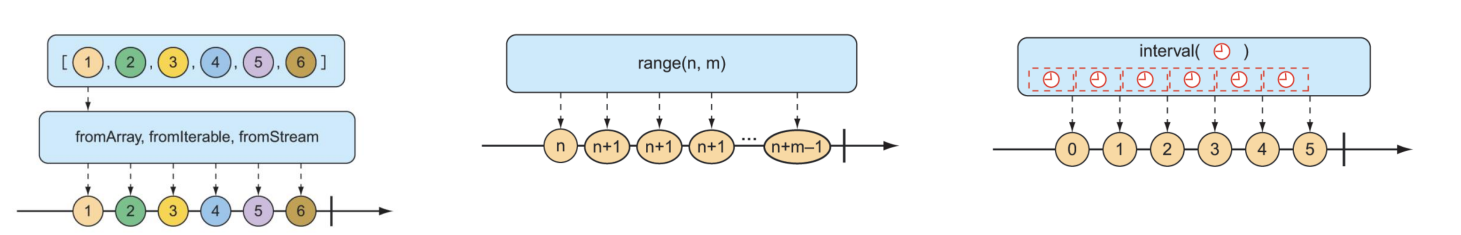

创建Flux

  • Flux的静态方法
  • 根据对象创建，just方法
  • 根据集成创建，数组、Iterable、Java Stream
  • range
  • interval

image-20231208200651833

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
package reactorfun;

import java.time.Duration;
import java.util.ArrayList;
import java.util.List;
import java.util.stream.Stream;

import org.junit.jupiter.api.Test;

import reactor.core.publisher.Flux;
import reactor.test.StepVerifier;

public class FluxCreationTests {

  @Test
  public void createAFlux_just() {
    Flux<String> fruitFlux = Flux
        .just("Apple", "Orange", "Grape", "Banana", "Strawberry");
    StepVerifier.create(fruitFlux)
        .expectNext("Apple")
        .expectNext("Orange")
        .expectNext("Grape")
        .expectNext("Banana")
        .expectNext("Strawberry")
        .verifyComplete();
  }

  @Test
  public void createAFlux_fromArray() {
    String[] fruits = new String[] {
        "Apple", "Orange", "Grape", "Banana", "Strawberry" };

    Flux<String> fruitFlux = Flux.fromArray(fruits);

    StepVerifier.create(fruitFlux)
        .expectNext("Apple")
        .expectNext("Orange")
        .expectNext("Grape")
        .expectNext("Banana")
        .expectNext("Strawberry")
        .verifyComplete();
  }

  @Test
  public void createAFlux_fromIterable() {
    List<String> fruitList = new ArrayList<>();
    fruitList.add("Apple");
    fruitList.add("Orange");
    fruitList.add("Grape");
    fruitList.add("Banana");
    fruitList.add("Strawberry");

    Flux<String> fruitFlux = Flux.fromIterable(fruitList);

    StepVerifier.create(fruitFlux)
        .expectNext("Apple")
        .expectNext("Orange")
        .expectNext("Grape")
        .expectNext("Banana")
        .expectNext("Strawberry")
        .verifyComplete();
  }

  @Test
   public void createAFlux_fromStream() {
     Stream<String> fruitStream =
          Stream.of("Apple", "Orange", "Grape", "Banana", "Strawberry");

     Flux<String> fruitFlux = Flux.fromStream(fruitStream);

     StepVerifier.create(fruitFlux)
         .expectNext("Apple")
         .expectNext("Orange")
         .expectNext("Grape")
         .expectNext("Banana")
         .expectNext("Strawberry")
         .verifyComplete();
   }

  @Test
  public void createAFlux_interval() {
    Flux<Long> intervalFlux =
        Flux.interval(Duration.ofSeconds(1))
            .take(5);

    StepVerifier.create(intervalFlux)
       .expectNext(0L)
        .expectNext(1L)
        .expectNext(2L)
        .expectNext(3L)
        .expectNext(4L)
        .verifyComplete();
  }

  @Test
  public void createAFlux_range() {
    Flux<Integer> intervalFlux =
        Flux.range(1, 5);

    StepVerifier.create(intervalFlux)
        .expectNext(1)
        .expectNext(2)
        .expectNext(3)
        .expectNext(4)
        .expectNext(5)
        .verifyComplete();
  }
}

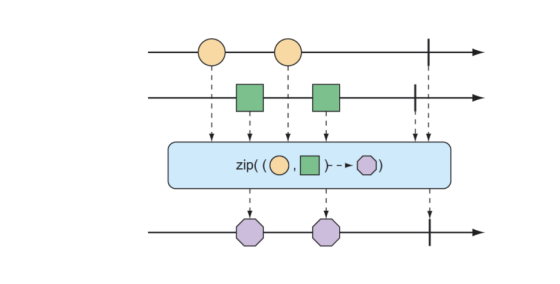

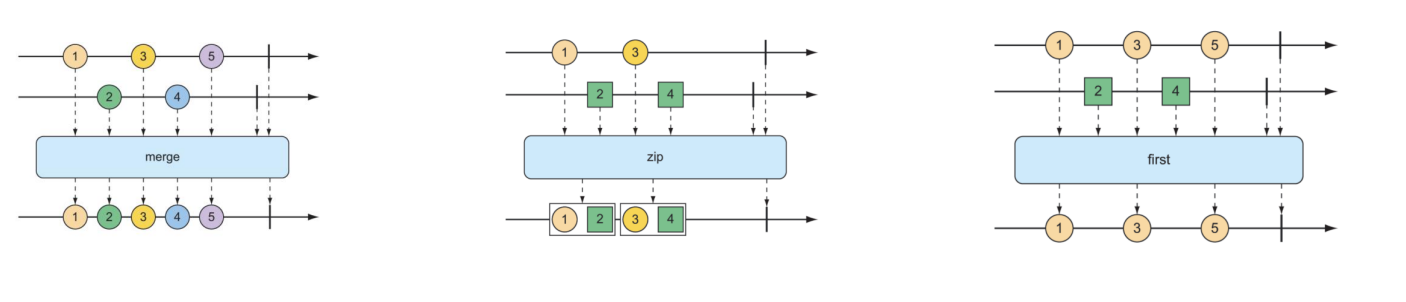

组合Flux 流

  • mergeWith
  • zip 自己决定如何合并
  • zip，提供合并函数
  • first 取两个流里面最先有的数据

image-20231208214648789

image-20231208214653479

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
package reactorfun;

import java.time.Duration;

import org.junit.jupiter.api.Test;

import reactor.core.publisher.Flux;
import reactor.test.StepVerifier;
import reactor.util.function.Tuple2;

public class FluxMergingTests {

  @Test
  public void mergeFluxes() {
    // delays needed to avoid the first flux from streaming the
    // data through before subscribing to the second flux.

    Flux<String> characterFlux = Flux
        .just("Garfield", "Kojak", "Barbossa")
        .delayElements(Duration.ofMillis(500));
    Flux<String> foodFlux = Flux
        .just("Lasagna", "Lollipops", "Apples")
        .delaySubscription(Duration.ofMillis(250))
        .delayElements(Duration.ofMillis(500));

    Flux<String> mergedFlux = characterFlux.mergeWith(foodFlux);

    StepVerifier.create(mergedFlux)
        .expectNext("Garfield")
        .expectNext("Lasagna")
        .expectNext("Kojak")
        .expectNext("Lollipops")
        .expectNext("Barbossa")
        .expectNext("Apples")
        .verifyComplete();
  }

  @Test
  public void zipFluxes() {
    Flux<String> characterFlux = Flux
        .just("Garfield", "Kojak", "Barbossa");
    Flux<String> foodFlux = Flux
        .just("Lasagna", "Lollipops", "Apples");

    Flux<Tuple2<String, String>> zippedFlux =
        Flux.zip(characterFlux, foodFlux);

    StepVerifier.create(zippedFlux)
          .expectNextMatches(p ->
              p.getT1().equals("Garfield") &&
              p.getT2().equals("Lasagna"))
          .expectNextMatches(p ->
              p.getT1().equals("Kojak") &&
              p.getT2().equals("Lollipops"))
          .expectNextMatches(p ->
              p.getT1().equals("Barbossa") &&
              p.getT2().equals("Apples"))
          .verifyComplete();
  }

  @Test
  public void zipFluxesToObject() {
    Flux<String> characterFlux = Flux
        .just("Garfield", "Kojak", "Barbossa");
    Flux<String> foodFlux = Flux
        .just("Lasagna", "Lollipops", "Apples");

    Flux<String> zippedFlux =
        Flux.zip(characterFlux, foodFlux, (c, f) -> c + " eats " + f);

    StepVerifier.create(zippedFlux)
          .expectNext("Garfield eats Lasagna")
          .expectNext("Kojak eats Lollipops")
          .expectNext("Barbossa eats Apples")
          .verifyComplete();
  }

  @Test
  public void firstWithSignalFlux() {
    // delay needed to "slow down" the slow Flux

    Flux<String> slowFlux = Flux.just("tortoise", "snail", "sloth")
          .delaySubscription(Duration.ofMillis(100));
    Flux<String> fastFlux = Flux.just("hare", "cheetah", "squirrel");

    Flux<String> firstFlux = Flux.firstWithSignal(slowFlux, fastFlux);

    StepVerifier.create(firstFlux)
        .expectNext("hare")
        .expectNext("cheetah")
        .expectNext("squirrel")
        .verifyComplete();
  }
}

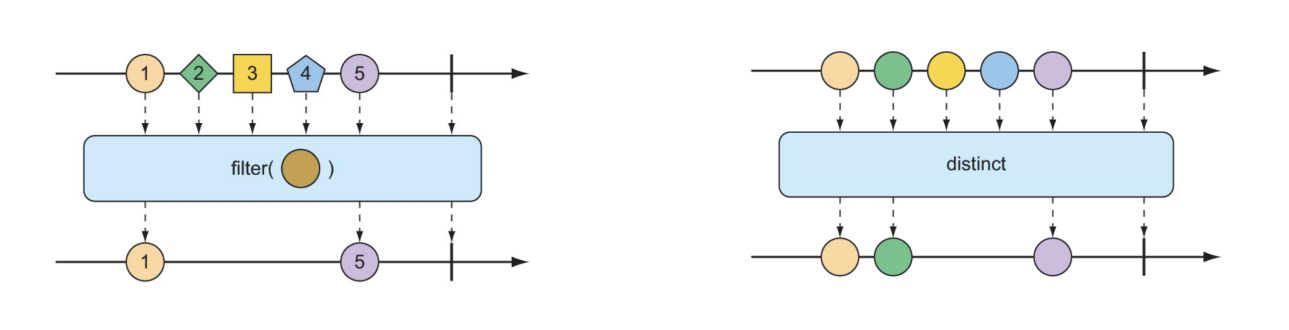

过滤Flux流2

  • skip：指定个数/时间
  • take：指定个数/时间
  • filter，需要提供Predicate
  • distinct，只发布源Flux中尚未发布过的数据项

image-20231208220311413

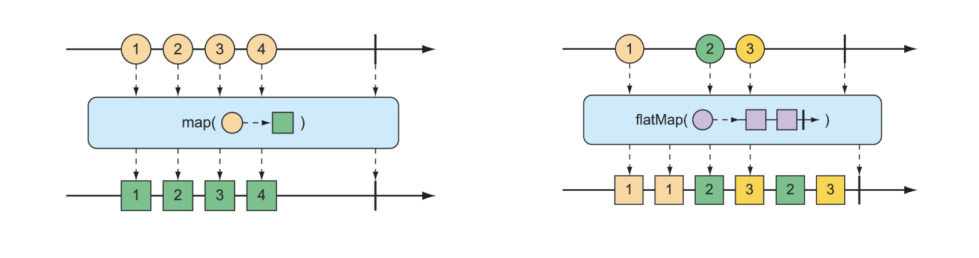

转换Flux流1

  • map
    • 同步
    • 返回具体值
  • flatMap
    • 异步
    • 转换出来的返回结果还是一个流（Mono/Flux）
    • 可以并发处理，指定用哪个并发模型处理
      • 多个流并发处理结果合并成一个流，但结果顺序不可控+
    • 扁平化
  • 并发模型（Schedulers方法）
    • .immediate()
    • .single()
    • .newSingle()
    • .elastic()
    • .parallel()

image-20231208220332640

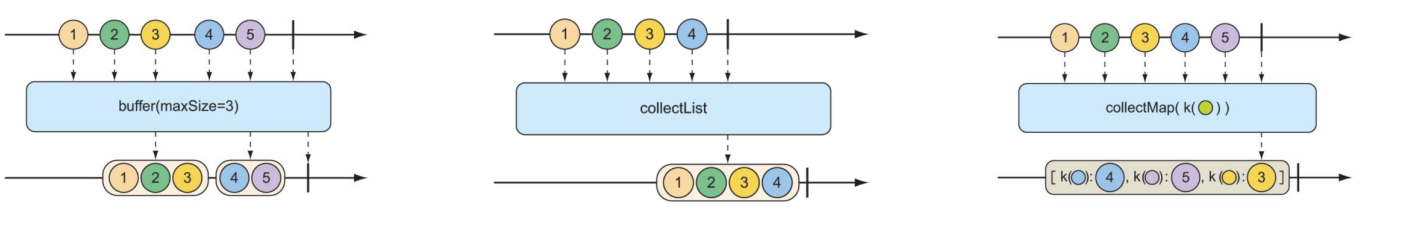

转换Flux流2

  • buffer，缓冲数据，bufferAndFlatMap
  • collectList，同：buffer不带参数则缓冲所有数据到列表
  • collectMap，需要提供生成key的函数

image-20231208220414490

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
package reactorfun;

import java.time.Duration;
import java.util.Arrays;
import java.util.List;

import org.junit.jupiter.api.Test;

import lombok.Data;
import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;
import reactor.core.scheduler.Schedulers;
import reactor.test.StepVerifier;

public class FluxTransformingTests {

  @Test
  public void skipAFew() {
    Flux<String> countFlux = Flux.just(
        "one", "two", "skip a few", "ninety nine", "one hundred")
        .skip(3);

    StepVerifier.create(countFlux)
        .expectNext("ninety nine", "one hundred")
        .verifyComplete();
  }

  @Test
  public void skipAFewSeconds() {
    Flux<String> countFlux = Flux.just(
        "one", "two", "skip a few", "ninety nine", "one hundred")
        .delayElements(Duration.ofSeconds(1))
        .skip(Duration.ofSeconds(4));

    StepVerifier.create(countFlux)
        .expectNext("ninety nine", "one hundred")
        .verifyComplete();
  }

  @Test
  public void take() {
    Flux<String> nationalParkFlux = Flux.just(
        "Yellowstone", "Yosemite", "Grand Canyon", "Zion", "Acadia")
        .take(3);

    StepVerifier.create(nationalParkFlux)
        .expectNext("Yellowstone", "Yosemite", "Grand Canyon")
        .verifyComplete();
  }

  @Test
  public void takeForAwhile() {
    Flux<String> nationalParkFlux = Flux.just(
        "Yellowstone", "Yosemite", "Grand Canyon", "Zion", "Grand Teton")
        .delayElements(Duration.ofSeconds(1))
        .take(Duration.ofMillis(3500));

    StepVerifier.create(nationalParkFlux)
        .expectNext("Yellowstone", "Yosemite", "Grand Canyon")
        .verifyComplete();
  }

  @Test
  public void filter() {
    Flux<String> nationalParkFlux = Flux.just(
        "Yellowstone", "Yosemite", "Grand Canyon", "Zion", "Grand Teton")
        .filter(np -> !np.contains(" "));

    StepVerifier.create(nationalParkFlux)
        .expectNext("Yellowstone", "Yosemite", "Zion")
        .verifyComplete();
  }

  @Test
  public void distinct() {
    Flux<String> animalFlux = Flux.just(
        "dog", "cat", "bird", "dog", "bird", "anteater")
        .distinct();

    StepVerifier.create(animalFlux)
        .expectNext("dog", "cat", "bird", "anteater")
        .verifyComplete();
  }

  @Test
  public void map() {
    Flux<Player> playerFlux = Flux
      .just("Michael Jordan", "Scottie Pippen", "Steve Kerr")
      .map(n -> {
        String[] split = n.split("\\s");
        return new Player(split[0], split[1]);
      });

    StepVerifier.create(playerFlux)
        .expectNext(new Player("Michael", "Jordan"))
        .expectNext(new Player("Scottie", "Pippen"))
        .expectNext(new Player("Steve", "Kerr"))
        .verifyComplete();
  }

  @Test
  public void flatMap() {
    Flux<Player> playerFlux = Flux
      .just("Michael Jordan", "Scottie Pippen", "Steve Kerr")
      .flatMap(n -> Mono.just(n)
          .map(p -> {
              String[] split = p.split("\\s");
              return new Player(split[0], split[1]);
            })
          .subscribeOn(Schedulers.parallel())
        );

    List<Player> playerList = Arrays.asList(
        new Player("Michael", "Jordan"),
        new Player("Scottie", "Pippen"),
        new Player("Steve", "Kerr"));

    StepVerifier.create(playerFlux)
        .expectNextMatches(p -> playerList.contains(p))
        .expectNextMatches(p -> playerList.contains(p))
        .expectNextMatches(p -> playerList.contains(p))
        .verifyComplete();
  }

  @Data
  private static class Player {
    private final String firstName;
    private final String lastName;
  }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
package reactorfun;

import java.util.Arrays;
import java.util.List;
import java.util.Map;

import org.junit.jupiter.api.Test;

import reactor.core.publisher.Flux;
import reactor.core.publisher.Mono;
import reactor.core.scheduler.Schedulers;
import reactor.test.StepVerifier;

public class FluxBufferingTests {

  @Test
  public void buffer() {
    Flux<String> fruitFlux = Flux.just(
        "apple", "orange", "banana", "kiwi", "strawberry");

    Flux<List<String>> bufferedFlux = fruitFlux.buffer(3);

    StepVerifier
        .create(bufferedFlux)
        .expectNext(Arrays.asList("apple", "orange", "banana"))
        .expectNext(Arrays.asList("kiwi", "strawberry"))
        .verifyComplete();
  }

  @Test
  public void bufferAndFlatMap() throws Exception {
    Flux.just(
        "apple", "orange", "banana", "kiwi", "strawberry")
        .buffer(3)
        .flatMap(x ->
          Flux.fromIterable(x)
            .map(y -> y.toUpperCase())
            .subscribeOn(Schedulers.parallel())
            .log()
                 //map的话返回的是flux<string>类型
                 //fluxmap返回string类型
        ).subscribe();
  }

  @Test
  public void collectList() {
    Flux<String> fruitFlux = Flux.just(
        "apple", "orange", "banana", "kiwi", "strawberry");

    Mono<List<String>> fruitListMono = fruitFlux.collectList();

    StepVerifier
        .create(fruitListMono)
        .expectNext(Arrays.asList(
            "apple", "orange", "banana", "kiwi", "strawberry"))
        .verifyComplete();
  }

  @Test
  public void collectMap() {
    Flux<String> animalFlux = Flux.just(
        "aardvark", "elephant", "koala", "eagle", "kangaroo");

    Mono<Map<Character, String>> animalMapMono =
        animalFlux.collectMap(a -> a.charAt(0));

    StepVerifier
        .create(animalMapMono)
        .expectNextMatches(map -> {
          return
              map.size() == 3 &&
              map.get('a').equals("aardvark") &&
              map.get('e').equals("eagle") &&
              map.get('k').equals("kangaroo");
        })
        .verifyComplete();
  }

  @Test
  public void all() {
    Flux<String> animalFlux = Flux.just(
        "aardvark", "elephant", "koala", "eagle", "kangaroo");

    Mono<Boolean> hasAMono = animalFlux.all(a -> a.contains("a"));
    StepVerifier.create(hasAMono)
      .expectNext(true)
      .verifyComplete();

    Mono<Boolean> hasKMono = animalFlux.all(a -> a.contains("k"));
    StepVerifier.create(hasKMono)
      .expectNext(false)
      .verifyComplete();
  }

  @Test
  public void any() {
    Flux<String> animalFlux = Flux.just(
        "aardvark", "elephant", "koala", "eagle", "kangaroo");

    Mono<Boolean> hasAMono = animalFlux.any(a -> a.contains("a"));

    StepVerifier.create(hasAMono)
      .expectNext(true)
      .verifyComplete();

    Mono<Boolean> hasZMono = animalFlux.any(a -> a.contains("z"));
    StepVerifier.create(hasZMono)
      .expectNext(false)
      .verifyComplete();
  }
}

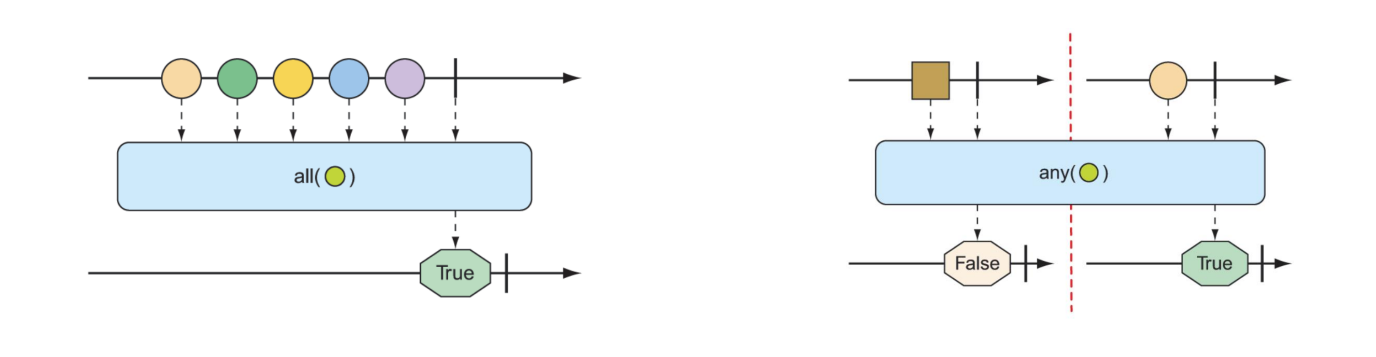

对流执行逻辑操作

  • all，需要提供Predicate函数，注意返回类型Mono
  • any，需要提供Predicate函数，注意返回类型Mono

image-20231208221031163

缓冲

  • buffer，缓冲数据，bufferAndFlatMap
  • collectList，同：buffer不带参数则缓冲所有数据到列表
  • collectMap，需要提供生成key的函数


许可协议

本文采用 署名-非商业性使用-相同方式共享 4.0 国际 许可协议，转载请注明出处。
